Uncoiler for Tube / Pipe
Line Accumulator for Tube /
Pipe Line
Forming Stands for Tube / Pipe
Mill Sizing Stands + Turks Head for Tube / Pipe
Mill
Flying Saw for Tube / Pipe Line
1.4
Example of Main Components &
product flow
(steel pipe):
* Raw material (steel coil) →

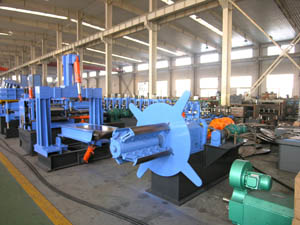

* UNCOILER
Double-side 360º rotary
for feeding coil into the accumulator →
* SHEARING / END WELDING MACHINE for shearing and welding ends
of 2 coils →
* ACCUMULATOR 150-300m for storing material strips for
continuous run during welding of 2 strips →

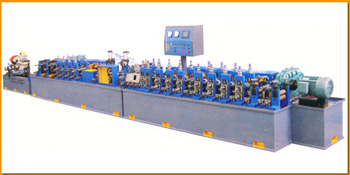

* FORMING, WELDING and SIZING UNIT:
-
FEEDING / LEVELLING DEVICE, 5-rolls to make steel strips go into
forming device →
-
FORMING DEVICE, e.g. 7-stands, roughly forming and controlling
weld seam →
- GUIDING, EXTRUDING / WELDING DEVICE
- (HF HIGH FREQUENCY for
Carbon Steel
/ Low Alloy Steel Material),
OR:
- (AR-ARC WELDER for Stainless Steel Material)
with rolls for
flat seam and welding →#8594;
- SCRAPERS of weld →
- COOLING PIPE DEVICE →
- SIZING DEVICE, 5-stands for fine shaping and control of
size accuracy after welding →
- ROUGHLY STRAIGHTENING FRAME for finished pipes, TURKS
HEAD type 4 rolls →
* COMPUTER-CONTROLLED OR PNEUMATIC LENGTH CUTTING SAW →
* FINISHED PIPE PASSING RACK
* MAIN DRIVING SYSTEM with motors and reducers to power
gearboxes and shafts of rolls
Work flow of

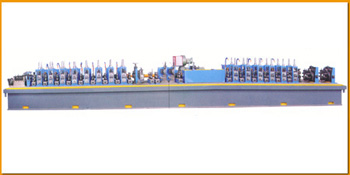

High Frequency Pipe / Tube Line
We offer also
other New & Old machines for:
EPS / PU /
Mineral Wool Sandwich Panel, Roll-Forming, Slitting,
Cut-to-Length,
Tube, Pipe Lines, Rolling Mills,
Descalers
for
Steel Industry, Foundry
and Sandwich Panel Industry.
